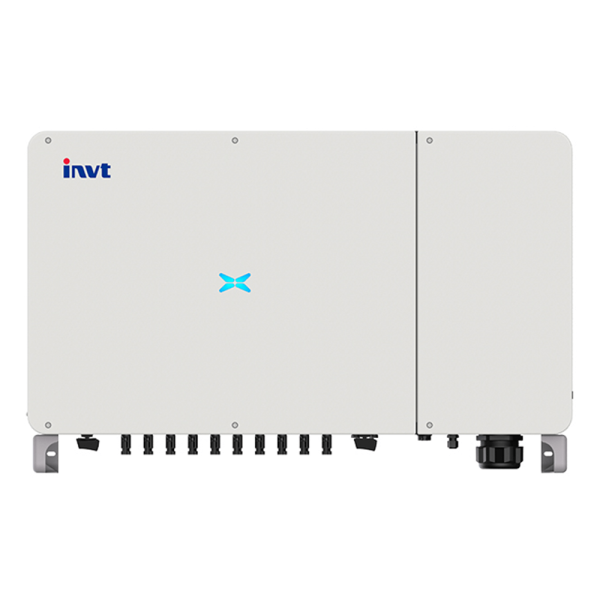

INVT 136Kw 3 Phase On-Grid Inverter XG136KTR 480V

Welcome to the world of solar power generation! In recent years, the demand for clean and renewable energy sources has significantly increased. Solar power has emerged as one of the most popular options due to its sustainability and cost-effectiveness. To harness the maximum potential of solar energy, efficient and reliable inverters play a crucial role.

XG100-136kW three-phase on-grid solar inverters have high power density and are equipped with one-stop intelligent data management platform to provide flexible and efficient solutions for larger industrial and commercial power stations, large poverty alleviation power stations and large ground power stations.

Understanding On-Grid Inverters

An on-grid inverter, also known as a grid-tied inverter, is a vital component of a solar power system. Its primary function is to convert the direct current (DC) electricity generated by solar panels into alternating current (AC) electricity that can be used by household appliances and fed back into the electrical grid. On-grid inverters enable users to offset their energy consumption and even earn credits for surplus energy production.

The INVT 136Kw 3 Phase On-Grid Inverter

The INVT 136Kw 3 Phase On-Grid Inverter – XG136KTR 480V is an advanced and high-performance inverter designed to optimize solar power generation. This inverter model is specifically engineered to meet the demands of large-scale commercial and industrial solar installations.

Key Features and Benefits

The INVT 136Kw 3 Phase On-Grid Inverter offers a range of features and benefits that make it a standout choice for solar power systems. Some of its key features include:

High Efficiency:

The XG136KTR 480V is designed for maximum efficiency, ensuring that a significant portion of the solar energy is converted into usable electricity. With high conversion rates, this inverter helps to maximize the return on investment for solar system owners.

Three-Phase Configuration:

This inverter operates on a three-phase system, which enhances its performance and stability. The three-phase design allows for better load distribution and ensures a balanced flow of electricity.

Robust Construction:

The XG136KTR 480V is built to withstand various environmental conditions. Its rugged construction ensures durability and reliability, even in challenging climates.

Intelligent MPPT Tracking:

The inverter utilizes Maximum Power Point Tracking (MPPT) technology to optimize power generation. It constantly tracks the solar panel’s output and adjusts the inverter’s operating parameters to extract the maximum available power.

Advanced Protections:

To safeguard the inverter and the overall solar power system, the XG136KTR 480V incorporates multiple protection features. These include overvoltage protection, overcurrent protection, short circuit protection, and anti-islanding protection.

Installation and Setup

Installing the INVT 136Kw 3 Phase On-Grid Inverter is a streamlined process. However, it is recommended to consult with a professional solar installer to ensure a seamless installation. The inverter should be mounted in a well-ventilated area with proper clearance for maintenance and airflow.

Monitoring and Control

The XG136KTR 480V provides comprehensive monitoring and control capabilities. It can be integrated with a monitoring system, allowing users to monitor their solar power generation in real-time. Additionally, the inverter’s built-in display provides essential information about its operation and performance.

Maximizing Solar Power Generation

To optimize the performance of the INVT 136Kw 3 Phase On-Grid solar inverter and the entire solar power system, consider the following tips:

Proper System Sizing:

Ensure that the solar panel array is appropriately sized to match the inverter’s capacity. Oversized or undersized systems can impact overall efficiency.

Regular Maintenance:

Perform routine maintenance checks to keep the inverter in top condition. This includes cleaning the solar panels, inspecting electrical connections, and ensuring proper ventilation around the inverter.

Shading Avoidance:

Minimize shading on the solar panels by trimming trees or relocating objects that cast shadows. Shading can significantly reduce power generation.

Optimal Orientation:

Position the solar panels to face the sun directly. Optimal orientation maximizes the exposure to sunlight, resulting in higher energy production.

Maintenance and Durability

The INVT 136Kw 3 Phase On-Grid Inverter is designed with longevity in mind. However, regular maintenance is essential to ensure its continued performance. The inverter should be inspected periodically for any signs of damage or wear. It is also recommended to follow the manufacturer’s guidelines for maintenance procedures.

Warranty and Support

INVT provides a comprehensive warranty for the XG136KTR 480V inverter. The warranty coverage ensures protection against manufacturing defects and ensures peace of mind for the solar system owner. Additionally, INVT offers reliable customer support to assist with any inquiries or technical issues that may arise.

Conclusion

The INVT 136Kw 3 Phase On-Grid Inverter – XG136KTR 480V is a powerful and efficient solution for large-scale solar power systems. With its high conversion efficiency, intelligent tracking technology, and robust construction, it delivers optimal performance and durability. By choosing the INVT 136Kw 3 Phase On-Grid Inverter, solar system owners can unlock the full potential of their renewable energy investment.

FAQs

Can the INVT 136Kw 3 Phase On-Grid Inverter be used for residential installations?

No, the XG136KTR 480V is designed for large-scale commercial and industrial solar installations.

How do I monitor the performance of the inverter?

The inverter can be integrated with a monitoring system to track its performance in real-time.

Does the XG136KTR 480V come with a warranty?

Yes, INVT provides a comprehensive warranty for the inverter to ensure customer satisfaction.

Can the XG136KTR 480V withstand harsh weather conditions?

Yes, the inverter is built to withstand challenging environmental conditions, ensuring long-term durability.

How can I maximize the energy generation of my solar power system?

To maximize energy generation, ensure proper system sizing, regular maintenance, shading avoidance, and optimal panel orientation.



Additional information

Weight	101 kg
Dimensions	10.5 × 33 × 66 cm
Power	136 kW
Type	On grid
Phase	3
Warranty	5 years
