SMA Multicluster Box 6.3-11-SMAOTH10208-01/N

SMA Grid-Box 12.3-20
SMA HM-20 Home Manager

14,668.00 د.إ

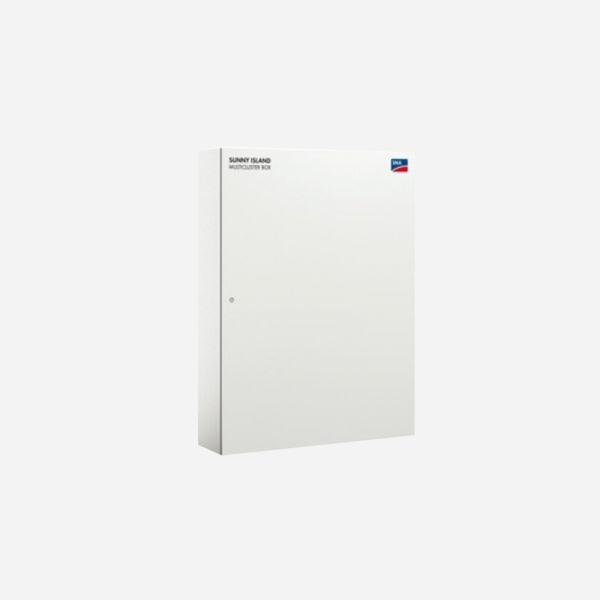

Multicluster Box MC-Box-6.3-11, 3-Phase Multicluster Box 230V/50Hz For Up To 6 Sunny Island 6.0H/8.0H, generator/load connection of 55 kW each, incl. com cable.

Availability: Available soon SKU: SMAOTH10208-01/N Categories: , ,

Description

The power of the AC main distribution unit for Sunny Island systems has been increased by 20 %. This allows off-grid and hybrid systems in the power ranges of 20 to 300 kW to be implemented even more cost-effectively. The specific costs for the overall system are being reduced thanks to a maximum PV output of 360 kW and the flexible design capability of the Sunny Island 6.0H / 8.0H. Based on proven technology, 2 to 12 three-phase clusters, each consisting of 3 Sunny Island inverters, can be connected in parallel.

Additional information

Weight 121.25 kg
SMA Multicluster Box 6.3-11-SMAOTH10208-01/N DataSheet
