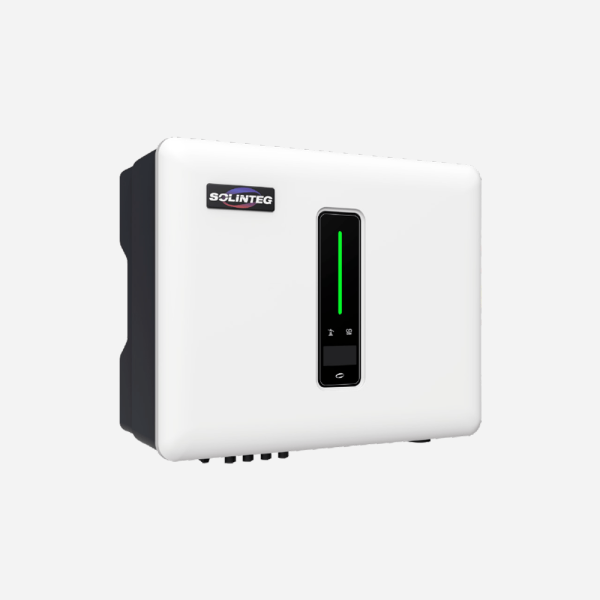

Solinteg 1-Phase Hybrid Inverter MHS-5K-30

Solinteg 1-Phase MHS-5K-30 Residential Hybrid inverter; Recommended Max PV input Power – 8KW; Nominal AC power (@230V, 50Hz) 5KW; Nominal AC Voltage L/N/PE 230V; No. of MPPTs – 2 no’s; No. of PV strings per MPPT 1 no’s; Max PV input voltage 600V; Max efficiency 97.6%; Communication – CAN, RS485, WiFi/LAN (Optional); Output Over Voltage Protection DC Type II/AC Type III , Compliance – IEC/EN 62109, IEC/EN 61000, EN50549-1, TOR Generator Type A, VDE-AR-N-4105 Features – Compact and elegant design with integrated diecasting technology, Convenient installation and O&M with horizontal design and quick plug terminals

Availability: 1 in stock SKU: SPCINV00004 Categories: , , ,


Solinteg 1-Phase Hybrid Inverter MHS-5K-30

In today’s world, where renewable energy is gaining significant traction, finding efficient and reliable solar inverters is crucial. The Solinteg 1-Phase Hybrid solar Inverter MHS-5K-30 is an exceptional product that combines advanced technology, high performance, and exceptional energy efficiency.

Key Features of the Solinteg 1-Phase Hybrid Inverter MHS-5K-30

The Solinteg 1-Phase Hybrid Inverter MHS-5K-30 offers a wide range of features that make it a top choice among solar energy system owners. Now, let’s delve into some of its main features:

Efficiency and Performance

The MHS-5K-30 boasts high conversion efficiency, ensuring maximum power generation from the available solar energy. With advanced MPPT (Maximum Power Point Tracking) technology, this inverter optimizes energy production by continuously tracking and adjusting to the optimal voltage and current levels.

Battery Storage and Power Backup

One of the standout features of the Solinteg MHS-5K-30 is its compatibility with battery storage systems. This allows users to store excess solar energy generated during the day and utilize it during periods of low sunlight or power outages. The inverter intelligently manages the battery charging and discharging cycles, ensuring efficient use of stored energy.

Advanced Monitoring and Control

With built-in Wi-Fi and advanced monitoring capabilities, the MHS-5K-30 provides real-time data on energy production, consumption, and system performance. Users can conveniently access this information through a mobile app or web portal, enabling them to monitor their energy usage and make informed decisions regarding their power consumption patterns.

Easy Installation and Integration

The Solinteg 1-Phase Hybrid Inverter MHS-5K-30 is designed for easy installation and seamless integration into existing solar energy systems. Its compact size and lightweight construction make it suitable for both residential and commercial installations, offering flexibility and convenience during the setup process.

Safety and Reliability

Safety is paramount when it comes to solar energy systems, and the MHS-5K-30 prioritizes it with its robust built-in safety features. It offers protection against overvoltage, overcurrent, short circuits, and overheating, ensuring the longevity and safety of the inverter and the connected components.

Cost-Effectiveness and Return on Investment

Investing in the Solinteg 1-Phase Hybrid Inverter MHS-5K-30 proves to be a cost-effective decision in the long run. Its high efficiency and optimal energy utilization result in reduced electricity bills and a faster return on investment. Additionally, the inverter’s compatibility with battery storage systems further enhances the financial benefits by maximizing self-consumption and reducing reliance on the grid.

Environmental Benefits

By harnessing the power of solar energy, the MHS-5K-30 significantly reduces carbon emissions and helps combat climate change. It enables users to make a positive impact on the environment by reducing their carbon footprint and dependence on non-renewable energy sources.

Maintenance and Warranty

The Solinteg 1-Phase Hybrid Inverter MHS-5K-30 requires minimal maintenance due to its robust design and high-quality components. It comes with a comprehensive warranty, ensuring peace of mind and reliable performance over an extended period.


The Solinteg 1-Phase Hybrid Inverter MHS-5K-30 is an exceptional energy solution for residential and commercial users seeking maximum efficiency, reliability, and cost-effectiveness. With its advanced features, seamless integration, and strong environmental benefits, this inverter is a reliable choice for harnessing solar power and transitioning towards a sustainable future.


Can the Solinteg MHS-5K-30 be used for off-grid installations?

Yes, the Solinteg MHS-5K-30 is compatible with off-grid systems when combined with an appropriate battery storage solution.

Is the Solinteg 1-Phase Hybrid Inverter suitable for both residential and commercial installations?

Absolutely! The MHS-5K-30 is designed to cater to the needs of both residential and commercial users.

Does the Solinteg MHS-5K-30 come with a warranty?

Yes, the Solinteg 1-Phase Hybrid Inverter MHS-5K-30 comes with a comprehensive warranty, ensuring reliable performance and customer satisfaction.

Can I monitor the performance of the inverter remotely?

Yes, the MHS-5K-30 offers advanced monitoring capabilities through a mobile app or web portal, allowing you to monitor your system’s performance from anywhere.

Does the Solinteg MHS-5K-30 support grid-tie functionality?

Yes, the MHS-5K-30 supports grid-tie functionality, enabling you to export excess solar energy back to the grid and potentially earn credits or incentives.

Additional information

Weight 59.52 kg
