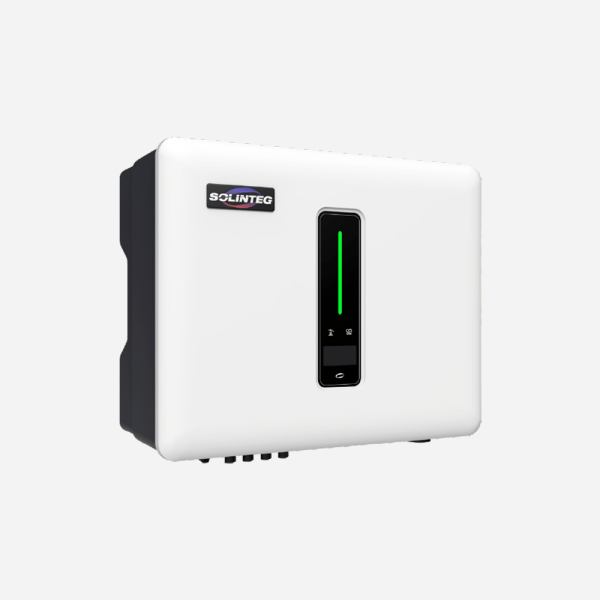

Solinteg 3-Phase Hybrid Inverter MHT-20K-40

Sineng 250kw on-grid String Inverter
Solinteg 3-Phase Hybrid Inverter MHT-12K-40

Solinteg 3-Phase MHT-20K-40 Commercial Hybrid inverter; Recommended Max PV input Power – 30.0KW; Nominal AC power (@230V, 50Hz) 20KW; Nominal AC Voltage 3L/N/PE 230V; No. of MPPTs – 2 no’s; No. of PV strings per MPPT 2 no’s; Max PV input voltage 1000V; Max efficiency 98.4%; Communication – CAN, RS485, WiFi/LAN (Optional); Output Over Voltage Protection DC Type II/AC Type III , Compliance – IEC/EN 62109, IEC/EN 61000, EN50549-1, TOR Generator Type A, VDE-AR-N-4105 Features – Compact and elegant design with integrated diecasting technology, Convenient installation and O&M with horizontal design and quick plug terminals

Availability: Available soon SKU: SPCINV00017 Categories: , , ,

Description

Solinteg 3-Phase MHT-20K-40 Commercial Hybrid inverter; Recommended Max PV input Power – 30.0KW; Nominal AC power (@230V, 50Hz) 20KW; Nominal AC Voltage 3L/N/PE 230V; No. of MPPTs – 2 no’s; No. of PV strings per MPPT 2 no’s; Max PV input voltage 1000V; Max efficiency 98.4%; Communication – CAN, RS485, WiFi/LAN (Optional); Output Over Voltage Protection DC Type II/AC Type III , Compliance – IEC/EN 62109, IEC/EN 61000, EN50549-1, TOR Generator Type A, VDE-AR-N-4105 Features – Compact and elegant design with integrated diecasting technology, Convenient installation and O&M with horizontal design and quick plug terminals

Additional information

Weight 59.52 kg
Solinteg 3-Phase Hybrid Inverter MHT-20K-40 DataSheet
