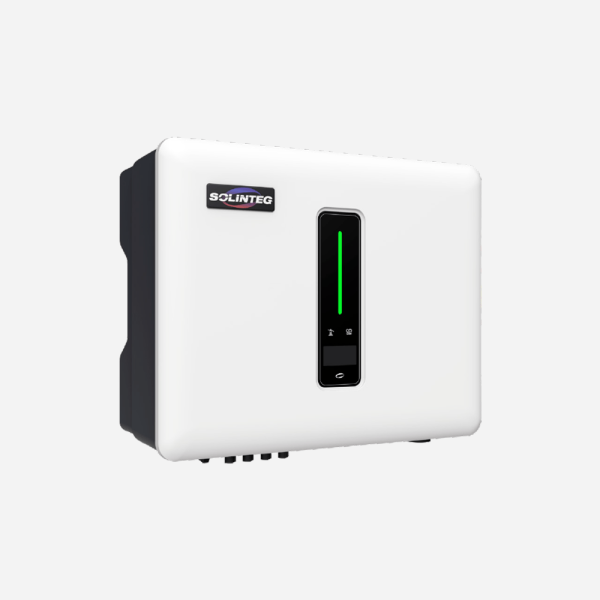

Solinteg 3-Phase Hybrid Inverter MHT-5K-25
Solinteg 3-Phase MHT-5K-25 Residential Hybrid inverter; Recommended Max PV input Power – 7.5KW; Nominal AC power (@230V, 50Hz) 5KW; Nominal AC Voltage 3L/N/PE 230V; No. of MPPTs – 2 no’s; No. of PV strings per MPPT 1 no’s; Max PV input voltage 1000V; Max efficiency 98.1%; Communication – CAN, RS485, WiFi/LAN (Optional); Output Over Voltage Protection DC Type II/AC Type III , Compliance – IEC/EN 62109, IEC/EN 61000, EN50549-1, TOR Generator Type A, VDE-AR-N-4105 Features – Compact and elegant design with integrated diecasting technology, Convenient installation and O&M with horizontal design and quick plug terminals
- Description
- Additional information
- Reviews (0)
- downloads
Description
Solinteg 3-Phase MHT-5K-25 Residential Hybrid inverter; Recommended Max PV input Power – 7.5KW; Nominal AC power (@230V, 50Hz) 5KW; Nominal AC Voltage 3L/N/PE 230V; No. of MPPTs – 2 no’s; No. of PV strings per MPPT 1 no’s; Max PV input voltage 1000V; Max efficiency 98.1%; Communication – CAN, RS485, WiFi/LAN (Optional); Output Over Voltage Protection DC Type II/AC Type III , Compliance – IEC/EN 62109, IEC/EN 61000, EN50549-1, TOR Generator Type A, VDE-AR-N-4105 Features – Compact and elegant design with integrated diecasting technology, Convenient installation and O&M with horizontal design and quick plug terminals
Additional information
| Weight | 59.52 kg |
|---|
