Sunny Tripower Core 2

  • Max. generator power 165000 Wp STC Max. input voltage 1100 V MPP voltage range
  • Rated input voltage 500 V to 800 V
  • 670 V Min. input voltage
  • Start input voltage 200 V
  • 250 V Max. operating input current
  • Per MPPT 26 A Max. short circuit current per MPPT
  • Per string input 40A Number of independent MPPT inputs/strings per MPP input 12
Availability: 10 in stock SKU: SMASTP11060 Categories: , , ,

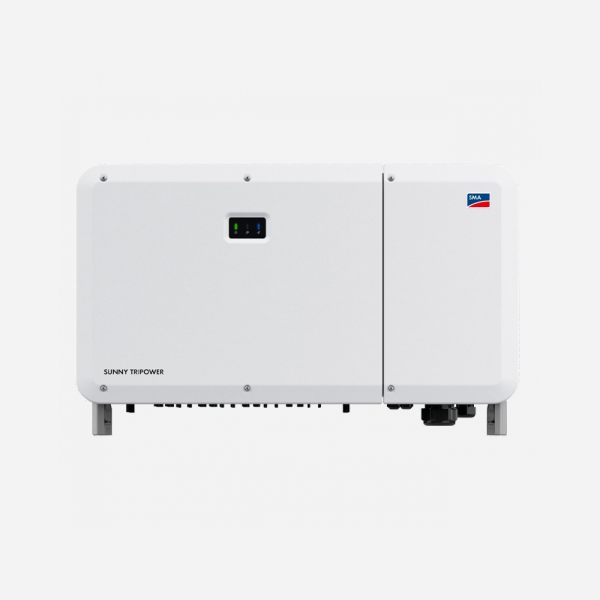

The Sunny Tripower CORE2 is the world’s first free-standing string inverter for decentralized rooftop and ground-based PV systems as well as covered parking spaces. The CORE2 is the third generation in the successful Sunny Tripower product family and is revolutionizing the world of commercial inverters with its innovative design. SMA engineers developed an inverter that combines a unique design with an innovative installation method to significantly reduce installation time and provide all target groups with a maximum return on investment. From delivery and installation to operation, the Sunny Tripower CORE2 generates widespread savings in logistics, labor, materials and services. Commercial PV installations are now quicker and easier to complete than ever before.

Additional information

Weight 185 kg
