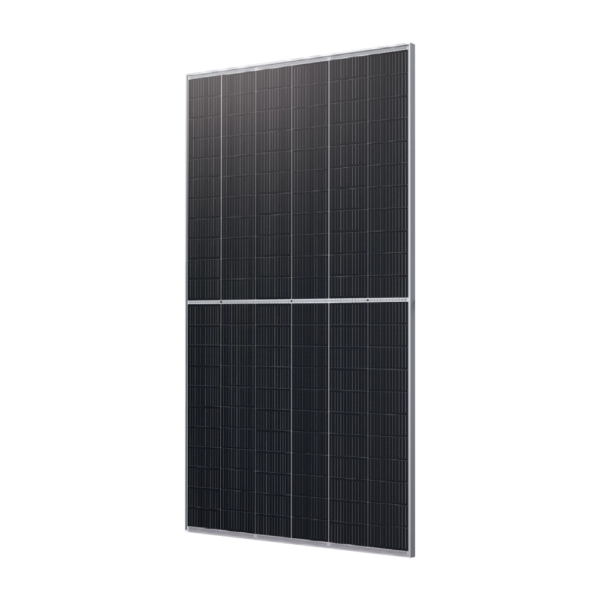

GCL Solar 715 Wp Panel | N-Type Bifacial

Description

The GCL Solar 715 Wp Panel is part of the GCL-NT12/66GDF 700–720W range, an ultra-high-power N-type bifacial dual glass module designed for large ground-mounted solar farms and commercial and industrial installations where maximum output per module and a lower cost per watt matter most.

Power & Efficiency

• Rated power: 715 Wp with 0 to +5W positive power tolerance
• Module efficiency: 23.02% under STC
• Max power voltage (Vmp): 40.65V | Max power current (Imp): 17.59A
• Open circuit voltage (Voc): 48.36V | Short circuit current (Isc): 18.51A
• 132 half-cut N-type monocrystalline cells (6×22)

210mm Large Wafer Technology

• Large-size 210mm silicon wafers deliver more power per module
• Fewer modules per MW reduces the cost of mounting structures, combiner boxes, cables and land
• Lower balance-of-system (BOS) costs help reduce the levelized cost of energy (LCOE)
• Non-destructive cell cutting reduces the risk of micro-cracks

Bifacial Technology

• Bifaciality of 80±5%: the rear side captures light reflected from the ground
• Output rises to 772.4W at a 10% rear irradiance ratio
• Ideal for single-axis trackers, elevated structures and reflective ground surfaces

N-Type Cell Advantage

• Lower LID/LeTID than conventional P-type modules
• Low temperature coefficient of Pmax (−0.29%/°C) for better output in high heat
• PID resistant and snail-trail free, thanks to selected encapsulation materials and strict process control

Build & Durability

• 2.0mm anti-reflection coated front glass + 2.0mm heat-strengthened back glass
• Anodized aluminium alloy frame with 3 bypass diodes
• Mechanical load: 5400Pa (snow) / 2400Pa (wind)
• Operating temperature: −40°C to +85°C
• Tested for harsh environments: salt mist (IEC 61701), ammonia corrosion (IEC 62716) and sand blowing (DIN EN 60068-2-68)

System Compatibility

• Maximum system voltage: 1500V DC for longer strings and fewer combiner boxes
• Max series fuse rating: 35A
• MC-compatible connectors with 4.0mm² cable, length customizable

Quality & Warranty

• 12-year product warranty
• 30-year linear power warranty with 99% output in year one
• Only 0.40% annual degradation, guaranteeing at least 87.4% of rated power after 30 years
• 2× 100% EL inspection for defect-free modules
• Manufactured in facilities certified to ISO 9001, ISO 14001 and ISO 45001
• Additional insurance backed by Swiss Re
